High Flow 6000L/h 24V DC Electric Coolant Pump for Energy Storage Cooling with IP67 Waterproof Grade

Pump Major Parameters

Model No.:OWPD250LQ-24-P38

Power Input:24VDC(18-32VDC)

Rated power:250W

Rated Flow rate :6000L/H @ H=8M

Max Flow:9000L/H

Max Lift Head:11M

Medium: glycol(50-60%)+water, dielectric oil,Electronic fluorinated solution

Medium temperature:

Working long hours guaranteed

-40℃ to +85℃ (-40°F to + 185°F)

Outlet diameter: 38mm

Speed regulation:No (Optional)

Fault Feedback signal:No (Optional)

IP Grade:IP67

Noise control:≤60dB

Service life:＞20000hours

Weight: 2200g

Features

◆With constant flow controlling

◆Reverse polarity protection

◆Dry running protection

◆Over Voltage, over current protection

◆Overload, over temperature protection

◆Single-stage Centrifugal pump

◆Magnetic force transmission (shield pump structure)

◆High efficiency brushless DC motor, low power consumption, high efficiency, more than 20000hours service life.

◆With wide range operating temperature

Driving device (Including motor)

◆Driving electromagnet: nylon plastic capsulated magnet

◆Screws and nuts: SUS 304 stainless steel

Driving Motor : brushless motor

◆Waterproof based on IP67 rating (en60529)

◆Connector model: AMP282104-1 (matched Plug AMP282080-1)

◆Nozzle size: 38mm

◆Motor winding frame :PPA GF

◆Pump housing: Aluminum

◆Bracket: Steel

◆Bracket hoop: Rubber

System pressure

-0.5-4 Bar ( 100℃ (212°F).

The service life is more than 20,000 hours based on the rated voltage and 36℃(86°F) ambient temperature.

Temperature parameter

Medium liquid temperature: -40℃ to +85℃ (-40°F to + 185°F)

Working ambient temperature: -40℃ to +85℃ (-40°F to +185°F) Humidity ≤90%

Storage temperature: -40℃ to +70℃ (-40°F to +158°F) (up to 100 ℃, but it will shorten the service life)

Performance

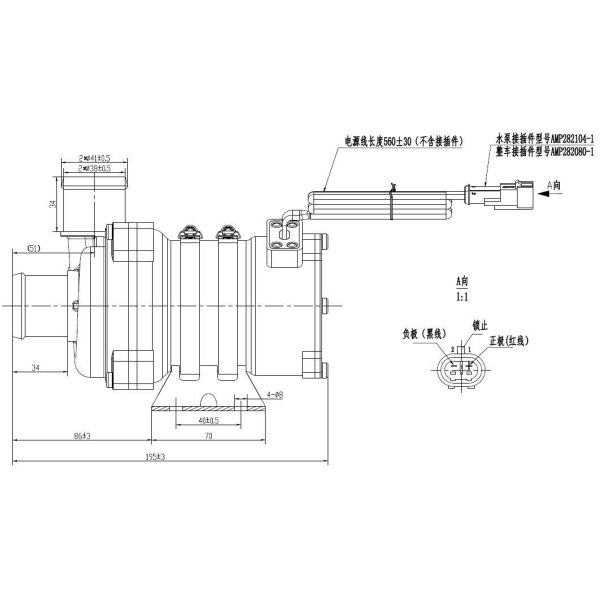

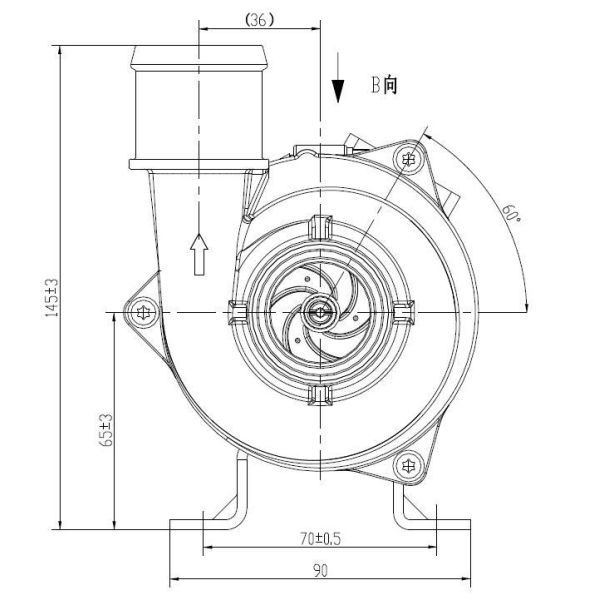

Pump overall size

Manufacturing Technique

we have 5 semi-automatic pump production lines in dust-free workshops1000m² testing room, UL certified lab and R&D deparment with 175 sets testing machines for pump design and development verification,durability testing,aging testing,performance testing.

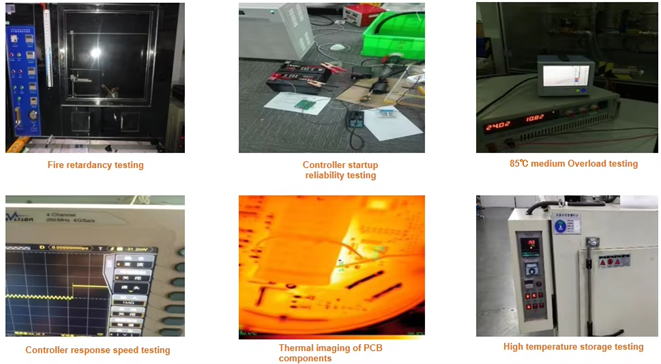

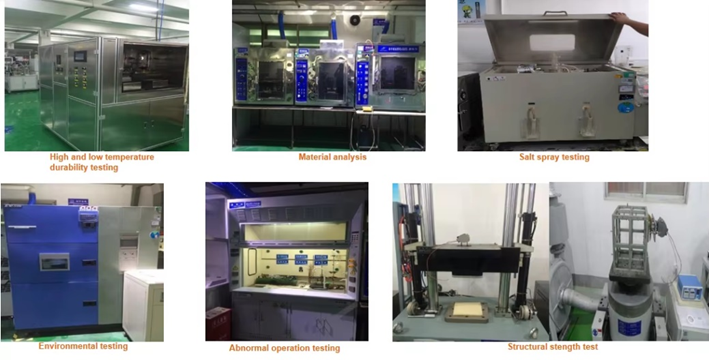

Verify capabilities and equipments

Over 50 typical testings performed according to automotive standards
